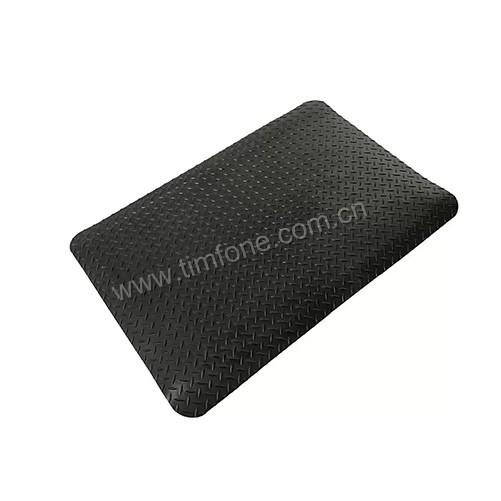

Conductive ESD anti-fatigue mat

Non Slip Anti Static ESD Anti Fatigue Mat , Foam Floor Mat Black And Conductive

Production Features for Anti Static ESD anti fatigue mat:

 Special anti fatigue design to make workers more comfortable

 Idea for electronic components manufacturers and static sensitive area

 Textured surface,non slip and more secure

 Long term effetive and anti static properties

 3 layers structure, surface is pvc, middle layer is EPDM foam, bottom layer is conductive  rubber

 PCS size:Size for pc : (L*W*T) 910*610*15mm, 710*610*15mm, 610*610*15mm,  510*610*15mm

 Roll size:L(500 - 80000)*W( 500 - 1000)*T( 15)mm

Anti static properties for ESD anti fatigue mat:

 Surface resistance of top layer < 10⁹

 Surface resistance of bottom layer < 10⁵

 Static dacey time < 1.2S

 Top layer friction electronic voltage < 100V

 Bottom layer friction electronic voltage < 100V

 Abration resistance properties > 1000 rmp

Product Description for Anti Static ESD anti fatigue mat:

Anti static ESD anti fatigue mat has three layers, top and bottom layer is PVC,middle layer is EPDM foam.It is suitable for assembly line and other workplace to make the workers who do the long standing job feel more comfortable.It is to be It is to be used in Electronic Manufacturing, Pharmaceutical Plants, Clean rooms, Fiber Optics, Electronic Assembly, Electronic Warehousing, Circuit Assembly, Aerospace and Hospitals and etc.
