No: 102413-365
Item: ESD PVC tile
Model No: TS0310
Surface resistivity: 106 - 108 Ohm
Size: 600*600mm
Thickness: 2mm,3mm
Static Dissipative Tile , Anti Static ESD PVC Floor Tile For Switchroom
Product Description for Anti static ESD pvc floor tile:

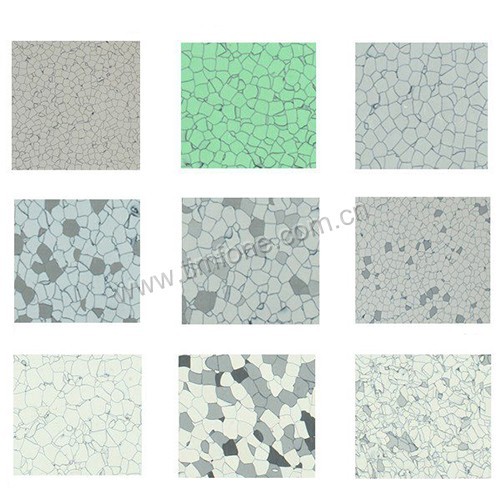

The floor uses the PVC resin as the main component, and utilizes the plastic particle interfaces to form the permanent conductive/anti-static network. The floor tile is looked like the marble. It provides fine performance in the decoration projects. In addition, they feature abrasion resistance, corrosion resistance, long life, aging resistance and low dust emission etc.
The products are applicable to the decoration and fitment of the apparatus rooms for the industries of telecommunication, electronics, microelectronics and medicine etc, and the clean rooms or workshops for the computer or electronic instrument industries.
Technical Data for Anti Static ESD pvc floor tile:
Item | Anti Static Vinyl(PVC) Tile | |
Thickness | 2.0mm,2.5mm,3.0mm,4.0mm | |
Size | 600*600mm/610*610mm/590*590mm | |
Weight(kg)/pc | 1.38/2.0mm,1.8/2.5mm,2.08/3mm | |
Surface Resistivity | Conductive tile | Dissipative tile |
<1.0*106 ohm | 1.0*106-1.0*109 ohm | |
Decay time | <0.4s | |
Charge Voltage | 70V | |
Fire Resistance(DIN4102) | B1 | |
Combustion Properties | 0.35s | |
Amount of anti-wear (SJ/T11236-2001) <0.02g/sqm 1000r | 0.014 | |
Anti-wear Properties EN660PT2 | 0.014 | |
Wheel Pressure | No influence | |
Residual Concavity EN443/DIN51955 | 0.03mm/2.0mm,0.035mm/2.5mm,0.04mm/3.0mm | |
