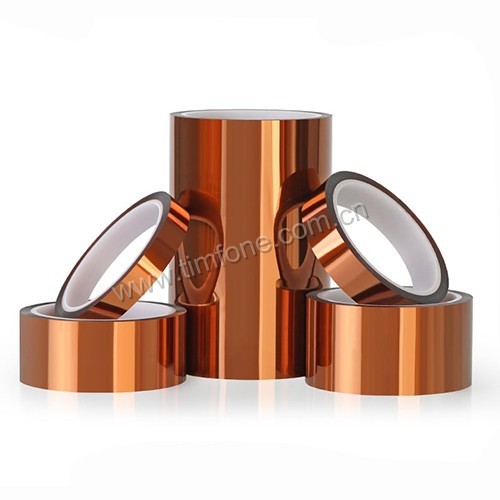

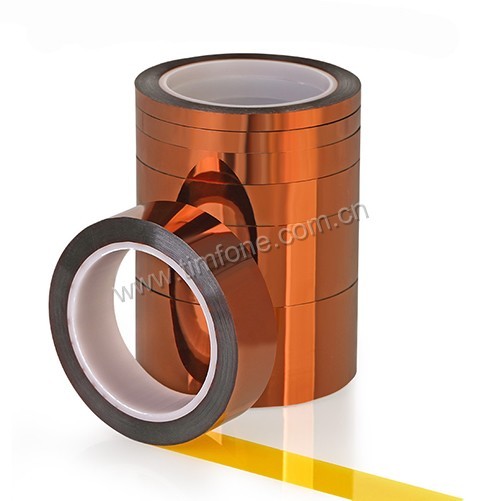

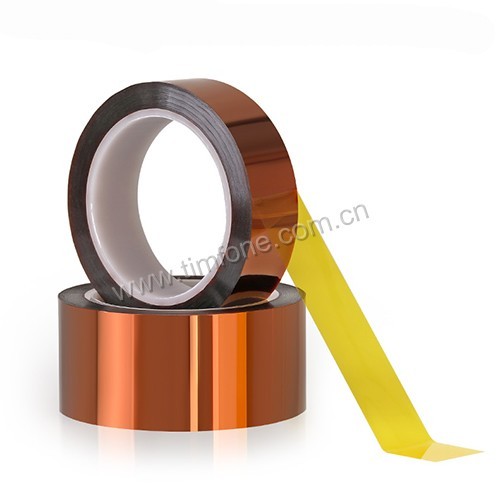

ESD kapton tape

No: TS1010
Item: ESD kapton tape
Material: Polyimide film
Standard length: 33m
Thickness: 0.03mm - 0.125mm

33m 0.03mm - 0.125mm Anti Static Tape ESD Kapton Tapes Single Side High Temperature Resistance



Product Description for ESD anti static kapton tape:

ESD anti static kapton tape is made of polyimide film with silicone adhesive coated on the film.It has excellent high temperature resistance,which can withstand up to 280ºC temperature.It is ideal for protecting gold finger during wave solder and widely Widely used as electrical insulation on transformer, motor, coils, PCB making etc.It is used in electrical insulation applications that meet class H requirements.



Product Features for ESD anti static kapton tape:

 Made of polyimide film

 Silicone adhesive type

 High temperature resistance up to 280ºC

 High mechanical strenght

 Excellent dielectric properties

 Smooth surface,no textured

 High insulation, acid and alkali resistant, low electrolysis

 Standard length : 33m,customizd lenght is also acceptable

 Thickness : 0.03 - 0.125mm

 Width:2mm - 500mm



Technical Data for ESD anti static kapton tape:

Backing

Polyimide film

Adhesive

Silicone adhesive

Color

Dark brown,coffee,black

Thickness

0.03 - 0.125mm

Length

33m

Tensile strength

>140(N/25MM)

Elogation

>40%

Break down strength

>150(N/25MM)

Voltage resistance

6KV

Adhesion

6(N/25MM)

Temperature

Up to 280ºC


Application to ESD anti static kapton tape:

Mainly used in paint, paint sealing, shoe type, packaging, building decoration and other industries

Electronic industry in transformer, motor, coil, capacitors and variable frequency power supply and other high temperature insulation winding

Applicable to printed circuit board (PCB), in the process of SMT, protecting glod finger when wave soldering

Prevent welding protection; Insulation bandaging of electronic products
