Open type ESD moisture barrier bag

No: TS1003
Item: Open type ESD moisture barrier bag

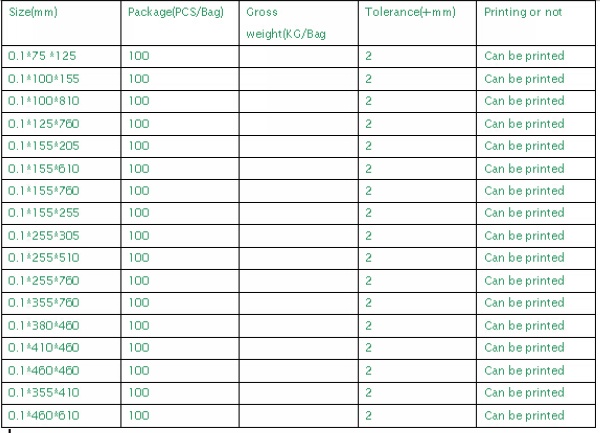

Size: Many sizes for option
Surface resistivity: 10^7 - 10^10
Decay time: <0.02S

Heat Seal Aluminum Foil Anti Static Bag ESD Moisture Barrier Bags Flat Open Top

Product Description for Flat Open Top ESD anti static moisture barrier bag:

Being applicated to pack electronis products which is sensitive to static,like PCBs,IC integrated circuit,CD driver,HD etc.ESD Moisture Barrier Poly Bags is made out of 3 layers construction, polyester/aluminum/polyethylene films.This bag provides moisture barrier properties intended to protect moisture sensitive devices that require a higher protection from moisture.This bag also providesstatic control properties intended to protect electronic devices and assemblies from ESD.

Product Features for ESD anti static moisture barrier bag:

Providing protection against static

3 layers construction,polyester/al/polyethylene

Silver white color

Flat open type

Firm lamination and hot sealing offers superior resistance of vapour and oxygen

Applicable to pack eletronics products which are sensitiv to static, like PCB boards, CD driver, HD, etc....

Surface resistivity: 10⁸ - 10¹¹

Many standard sizes and customer size is also acceptable

Can be with print according to customer's design

Tech Data for ESD anti static moisture barrier bag:

Property	Item	ESD Moisture barrier bag	Unit	Test Method
Physical	Thickness	0.08 - O.2MM+- 10%	MM	MILSTD3010
	Strenth	> 3.7	LBF	MILSTD3010
	Transmission rate	opaque		ASTMD1003
	MVTR	<0.02	g/100in2.24h	ASTMF1249
Anti static	Static shielding	<10	NJ	ANSI/ESD STM1131
	Static dacey time	<0.01	S	ANSI/ESD STM1131
	Inner surface resistance	<10¹¹	OHMS	ANSI/ESD STM1111
	Outer surface resistance	< 10¹¹	OHMS	ANSI/ESD STM1111
