Conductive grid bag

No: TS1006
Item: Conductive grid bag
Material: PE
Surface resistivity: 10^7 - 10^10
Decay time: <0.2S

LDPE ESD Static Shielding Bags Conductive Grid Bag 3 Mil Thickness Protect Printed Wire Boards

Product Features for anti static ESD grid bag:

Being blow-molded from LDPE

Good dust free and ESD properties

Soft texture full of flexibility

Relatively low cost and widely used

Surface resistivity: 10⁶

Providing protection against static

Applicable to pack eletronics products which are sensitiv to static, like PCB boards, CD driver, HD, etc....

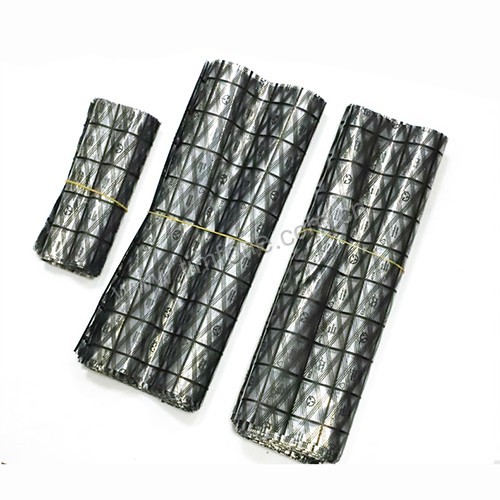

Many standard sizes and customer size is also acceptable

Can be with print according to customer's design

Product Description for ESD anti static grid bag:

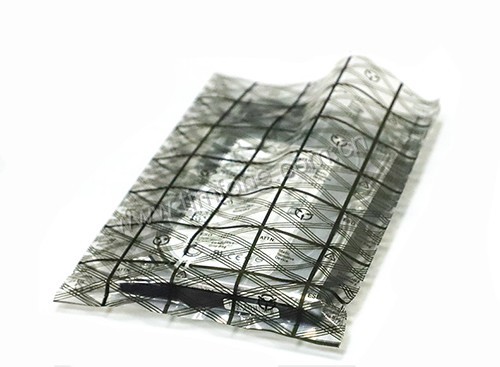

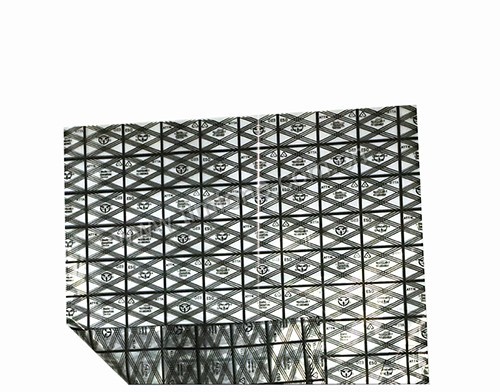

ESD grid bag is semi-transparent PE bag with network black conductive oil,which can offer excellent electrostatic discharge properties.It protects the printed wire boards and components from the tribo electric charges inside as well from outside through the conductive grid printed on the outside surface resistivity.

Tech Data for ESD anti static grid bag:

Property	Unit	Test Method
Surface resistance<10¹¹	Ohms/sqm	ASTMD257
Static decay time<0.01	S	EIA541
Tensile strength>18	IBS/.IN	ASTM D 882
Punch strength>100	P.S.I	ASTM D 3420
Tear Strength>8	IBS/.IN	ASTM D 882
MVTR<0.2S	GM/100 IN.2/24 HRS	ASTM E 96
Resistance of oxygen<0.5	CC/100 IN.2/24 HRS	ASTM D 3985
